CCZ4Solver.CCZ4Solver_FD4_GlobalAdaptiveTimeStep Class Reference

CCZ4 solver using fourth-order finite differences and global adaptive time stepping without enclave tasking. More...

Inheritance diagram for CCZ4Solver.CCZ4Solver_FD4_GlobalAdaptiveTimeStep:

Collaboration diagram for CCZ4Solver.CCZ4Solver_FD4_GlobalAdaptiveTimeStep:

Public Member Functions
	__init__ (self, name, patch_size, rk_order, min_meshcell_h, max_meshcell_h, second_order=False)
	Constructor.
	add_tracer (self, name, coordinates, project, number_of_entries_between_two_db_flushes, data_delta_between_two_snapsots, time_delta_between_two_snapsots, clear_database_after_flush, tracer_unknowns)
	Add tracer to project.
Public Member Functions inherited from CCZ4Solver.AbstractCCZ4Solver
	__init__ (self)
	Constructor.
	enable_second_order (self)
	add_all_solver_constants (self)
	Add domain-specific constants.
	add_makefile_parameters (self, peano4_project, path_of_ccz4_application)
	Add include path and minimal required cpp files to makefile.

Additional Inherited Members
Data Fields inherited from CCZ4Solver.AbstractCCZ4Solver
dict	integer_constants
dict	double_constants
Static Public Attributes inherited from CCZ4Solver.AbstractCCZ4Solver
float	Default_Time_Step_Size_Relaxation = 0.1
Protected Member Functions inherited from CCZ4Solver.AbstractCCZ4Solver
	_add_standard_includes (self)
	Add the headers for the compute kernels and initial condition implementations.
Static Protected Attributes inherited from CCZ4Solver.AbstractCCZ4Solver
dict	_FO_formulation_unknowns
dict	_SO_formulation_unknowns

Detailed Description

CCZ4 solver using fourth-order finite differences and global adaptive time stepping without enclave tasking.

Consult CCZ4Solver_FD4_GlobalAdaptiveTimeStepWithEnclaveTasking please.

Definition at line 867 of file CCZ4Solver.py.

Constructor & Destructor Documentation

__init__()

CCZ4Solver.CCZ4Solver_FD4_GlobalAdaptiveTimeStep.__init__	(		self,
			name,
			patch_size,
			rk_order,
			min_meshcell_h,
			max_meshcell_h,
			second_order = False )

Constructor.

Calibrate the default time step size calibration with 1/16 to take into account that we have a higher-order numerical scheme.

Definition at line 878 of file CCZ4Solver.py.

References CCZ4Solver.AbstractCCZ4Solver._add_standard_includes(), CCZ4Solver.AbstractCCZ4Solver._FO_formulation_unknowns, CCZ4Solver.construct_FD4_eigenvalues(), CCZ4Solver.construct_FD4_ncp(), CCZ4Solver.construct_FD4_postprocessing_kernel(), CCZ4Solver.construct_FD4_source_term(), CCZ4Solver.AbstractCCZ4Solver.Default_Time_Step_Size_Relaxation, gauge-wave-fv.CCZ4Solver.postprocess_updated_patch, and performance_testbed.CCZ4Solver.postprocess_updated_patch.

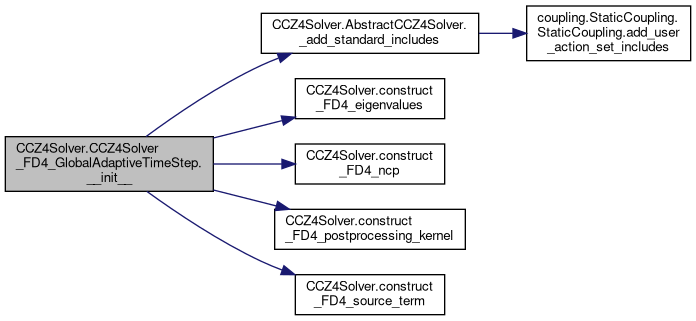

Here is the call graph for this function:

Member Function Documentation

add_tracer()

CCZ4Solver.CCZ4Solver_FD4_GlobalAdaptiveTimeStep.add_tracer	(		self,
			name,
			coordinates,
			project,
			number_of_entries_between_two_db_flushes,
			data_delta_between_two_snapsots,
			time_delta_between_two_snapsots,
			clear_database_after_flush,
			tracer_unknowns )

Add tracer to project.

Consult exahype2.tracer.DumpTracerIntoDatabase for an explanation of some of the arguments. Most of them are simply piped through to this class.

project: exahype2.Project

Reimplemented from CCZ4Solver.AbstractCCZ4Solver.

Definition at line 959 of file CCZ4Solver.py.

References CCZ4Solver.add_tracer_to_FD4_solver().

Here is the call graph for this function:

---

The documentation for this class was generated from the following file:

• applications/exahype2/ccz4/CCZ4Solver.py
