Scenario.TPV5.TPV5 Class Reference

Part of a series of benchmarks by the Statewide California Earthquake Center (SCEC) More...

Inheritance diagram for Scenario.TPV5.TPV5:

Collaboration diagram for Scenario.TPV5.TPV5:

Public Member Functions
	initial_conditions (self)
	generate_required_files (self, order)
Public Member Functions inherited from Scenario.Scenario.Scenario
	generate_file_from_template (self, template_file, full_qualified_filename, dictionary)
	copy_file_to_current_folder (self, current_filename, full_qualified_filename)

Static Public Attributes
list	domain_offset = [3.8, 0.0, 3.8]
list	domain_size = [32.4, 32.4, 32.4]
float	end_time = 10.0
list	tracer_coordinates
list	fault_coordinates
Static Public Attributes inherited from Scenario.Scenario.Scenario
list	domain_offset = [1., 1., 1.]
list	domain_size = [1., 1., 1.]
float	end_time = 0.0
list	tracer_coordinates = []

Detailed Description

Part of a series of benchmarks by the Statewide California Earthquake Center (SCEC)

Spontaneous rupture on a vertical strike-slip fault in a homogeneous halfspace. There are slightly heterogeneous initial stress conditions.

The description of the scenario can be found at: https://strike.scec.org/cvws/tpv5docs.html

Definition at line 7 of file TPV5.py.

Member Function Documentation

generate_required_files()

Scenario.TPV5.TPV5.generate_required_files	(		self,
			order )

Reimplemented from Scenario.Scenario.Scenario.

Definition at line 63 of file TPV5.py.

References Scenario.Scenario.Scenario.copy_file_to_current_folder(), and Scenario.Scenario.Scenario.generate_file_from_template().

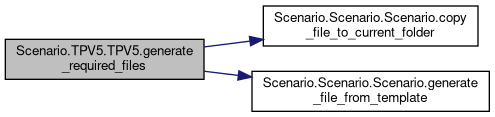

Here is the call graph for this function:

initial_conditions()

Scenario.TPV5.TPV5.initial_conditions

(

self

)

Reimplemented from Scenario.Scenario.Scenario.

Definition at line 56 of file TPV5.py.

Field Documentation

domain_offset

list Scenario.TPV5.TPV5.domain_offset = [3.8, 0.0, 3.8]

static

Definition at line 17 of file TPV5.py.

domain_size

list Scenario.TPV5.TPV5.domain_size = [32.4, 32.4, 32.4]

static

Definition at line 18 of file TPV5.py.

end_time

float Scenario.TPV5.TPV5.end_time = 10.0

static

Definition at line 20 of file TPV5.py.

fault_coordinates

list Scenario.TPV5.TPV5.fault_coordinates

static

Initial value:

=  [
          # on-fault at surface
          [20.0, 0.0,  8.0],
          [20.0, 0.0, 12.5],
          [20.0, 0.0, 15.5],
          [20.0, 0.0, 20.0], #surface above fault hypocenter
          [20.0, 0.0, 24.5],
          [20.0, 0.0, 27.5],
          [20.0, 0.0, 32.0],
          [20.0, 3.0, 20.0], #above fault hypocenter
          [20.0, 12.0, 20.0], #below fault hypocenter
          #on-fault at hypocenter depth
          [20.0, 7.5,  8.0],
          [20.0, 7.5, 12.5], #center of left patch
          [20.0, 7.5, 15.5],
          [20.0, 7.5, 20.0], #on fault hypocenter
          [20.0, 7.5, 24.5],
          [20.0, 7.5, 27.5], #center of right patch
          [20.0, 7.5, 32.0]
    ]

Definition at line 35 of file TPV5.py.

tracer_coordinates

list Scenario.TPV5.TPV5.tracer_coordinates

static

Initial value:

=  [
          # off-fault at surface
          [17.0, 0.0,  8.0],
          [17.0, 0.0, 32.0],
          [23.0, 0.0,  8.0],
          [23.0, 0.0, 32.0],
          # off-fault at hypocenter depth
          [17.0, 7.5,  8.0],
          [17.0, 7.5, 32.0],
          [23.0, 7.5,  8.0],
          [23.0, 7.5, 32.0],
    ]

Definition at line 22 of file TPV5.py.

---

The documentation for this class was generated from the following file:

• applications/exaseis/ExaSeis_core/Scenario/TPV5.py
