CCZ4Solver.CCZ4Solver_FD4_GlobalAdaptiveTimeStepWithEnclaveTasking Class Reference

CCZ4 solver using fourth-order finite differences and global adaptive time stepping incl enclave tasking. More...

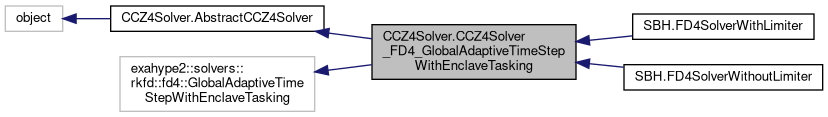

Inheritance diagram for CCZ4Solver.CCZ4Solver_FD4_GlobalAdaptiveTimeStepWithEnclaveTasking:

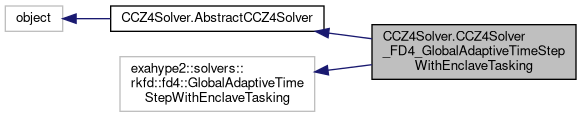

Collaboration diagram for CCZ4Solver.CCZ4Solver_FD4_GlobalAdaptiveTimeStepWithEnclaveTasking:

Public Member Functions
	__init__ (self, name, patch_size, rk_order, min_meshcell_h, max_meshcell_h, pde_terms_without_state, second_order=False)
	Constructor.
	add_tracer (self, name, coordinates, project, number_of_entries_between_two_db_flushes, data_delta_between_two_snapsots, time_delta_between_two_snapsots, clear_database_after_flush, tracer_unknowns)
	Add tracer to project.
Public Member Functions inherited from CCZ4Solver.AbstractCCZ4Solver
	__init__ (self)
	Constructor.
	enable_second_order (self)
	add_all_solver_constants (self)
	Add domain-specific constants.
	add_makefile_parameters (self, peano4_project, path_of_ccz4_application)
	Add include path and minimal required cpp files to makefile.

Additional Inherited Members
Data Fields inherited from CCZ4Solver.AbstractCCZ4Solver
dict	integer_constants
dict	double_constants
Static Public Attributes inherited from CCZ4Solver.AbstractCCZ4Solver
float	Default_Time_Step_Size_Relaxation = 0.1
Protected Member Functions inherited from CCZ4Solver.AbstractCCZ4Solver
	_add_standard_includes (self)
	Add the headers for the compute kernels and initial condition implementations.
Static Protected Attributes inherited from CCZ4Solver.AbstractCCZ4Solver
dict	_FO_formulation_unknowns
dict	_SO_formulation_unknowns

Detailed Description

CCZ4 solver using fourth-order finite differences and global adaptive time stepping incl enclave tasking.

The constructor of this classs is straightforward and realises the standard steps of any numerical implementation of the CCZ4 scheme:

1. Init the actual numerical scheme. This happens through the constructor of the base class.
2. Add the header files that we need, i.e. those files which contain the actual CCZ4 implementation.
3. Add some constants that any CCZ4 C++ code requires.
4. Set the actual implementation, i.e. link the generic PDE terms to the CCZ4-specific function calls.
5. Add the CCZ4-specific postprocessing.
6. Switch to higher-order interpolation and restriction.

Definition at line 714 of file CCZ4Solver.py.

Constructor & Destructor Documentation

__init__()

CCZ4Solver.CCZ4Solver_FD4_GlobalAdaptiveTimeStepWithEnclaveTasking.__init__	(		self,
			name,
			patch_size,
			rk_order,
			min_meshcell_h,
			max_meshcell_h,
			pde_terms_without_state,
			second_order = False )

Constructor.

Calibrate the default time step size calibration with 1/16 to take into account that we have a higher-order numerical scheme.

Definition at line 742 of file CCZ4Solver.py.

References CCZ4Solver.AbstractCCZ4Solver._add_standard_includes(), CCZ4Solver.AbstractCCZ4Solver._FO_formulation_unknowns, CCZ4Solver.construct_FD4_eigenvalues(), CCZ4Solver.construct_FD4_ncp(), CCZ4Solver.construct_FD4_postprocessing_kernel(), CCZ4Solver.construct_FD4_source_term(), CCZ4Solver.AbstractCCZ4Solver.Default_Time_Step_Size_Relaxation, gauge-wave-fv.CCZ4Solver.postprocess_updated_patch, and performance_testbed.CCZ4Solver.postprocess_updated_patch.

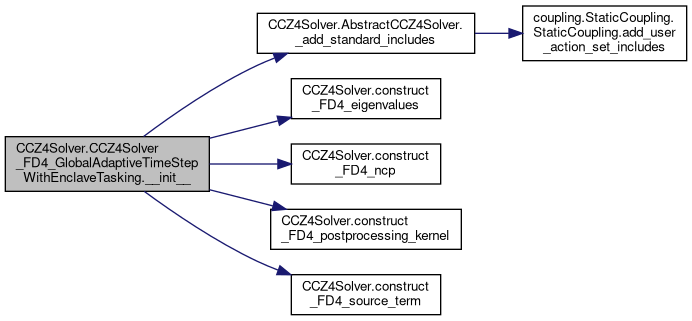

Here is the call graph for this function:

Member Function Documentation

add_tracer()

CCZ4Solver.CCZ4Solver_FD4_GlobalAdaptiveTimeStepWithEnclaveTasking.add_tracer	(		self,
			name,
			coordinates,
			project,
			number_of_entries_between_two_db_flushes,
			data_delta_between_two_snapsots,
			time_delta_between_two_snapsots,
			clear_database_after_flush,
			tracer_unknowns )

Add tracer to project.

This is a delegate to add_tracer_to_FD4_solver() which passes the object in as first argument.

Consult exahype2.tracer.DumpTracerIntoDatabase for an explanation of some of the arguments. Most of them are simply piped through to this class.

Parameters

project	exahype2.Project
tracer_unknowns	Integer You can set this variable to None. In this case, all variables are dumped.

Reimplemented from CCZ4Solver.AbstractCCZ4Solver.

Definition at line 825 of file CCZ4Solver.py.

References CCZ4Solver.add_tracer_to_FD4_solver().

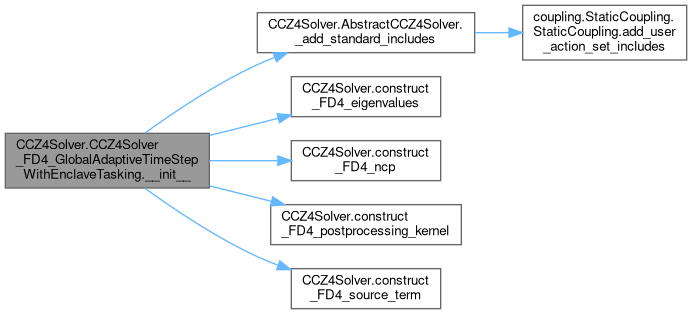

Here is the call graph for this function:

---

The documentation for this class was generated from the following file:

• applications/exahype2/ccz4/CCZ4Solver.py
